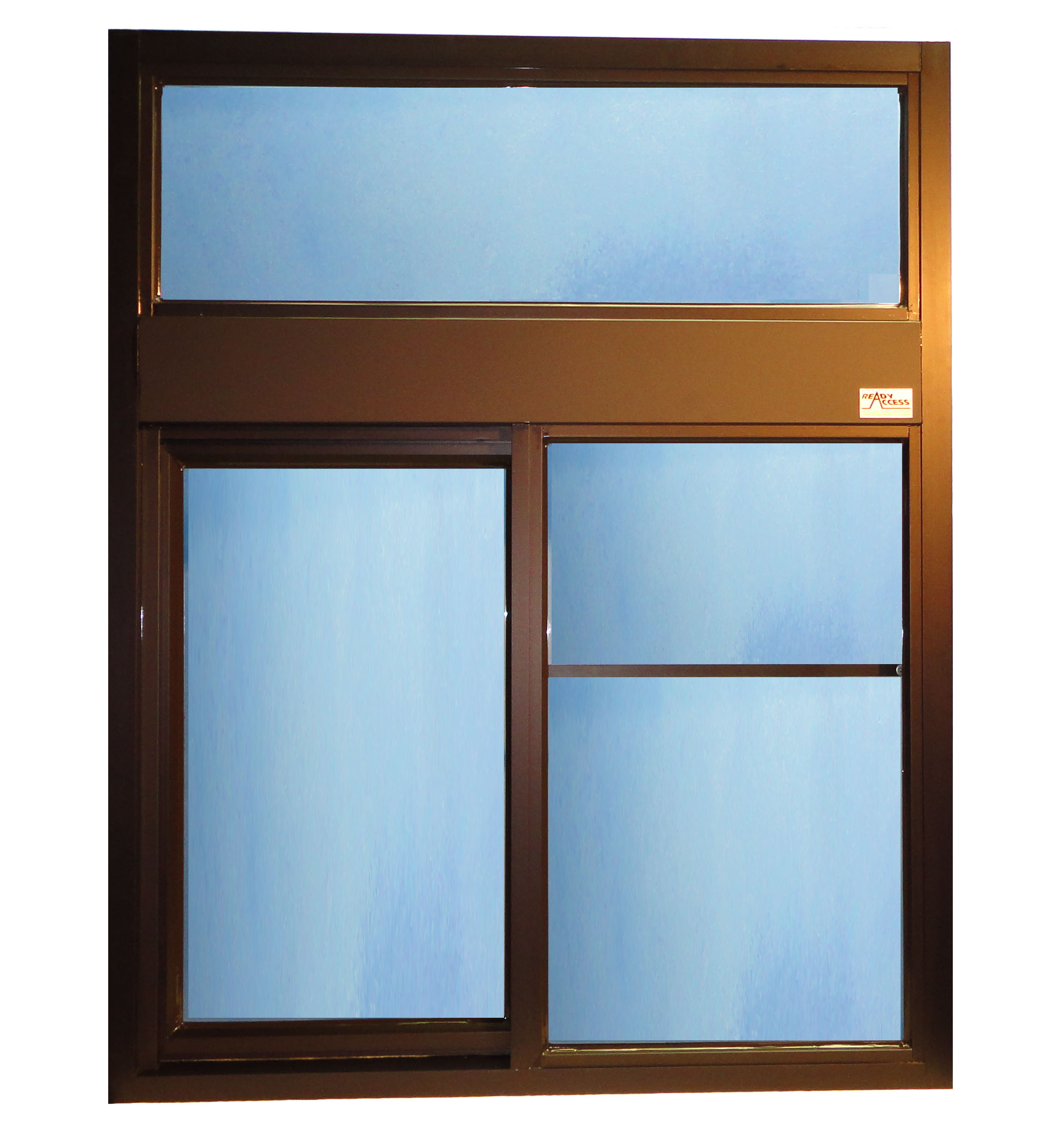

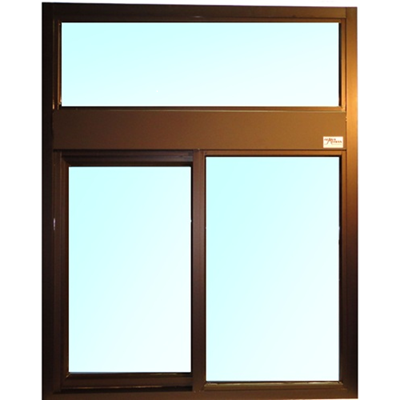

Single Panel Sliding Drive Thru Window with transom (4’x5’)

Single Panel Sliding Drive Thru Window with transom (4’x5’)

Most Popular / Best Lead Time

The popular single panel sliding window with transom is specified by many large chains for its quality construction and adaptability to site-specific needs.  The transom above the window provides light and an ideal place for graphics.

Choose the appropriate glass for your climate and budget.  Then select the best operating system for your drive thru window or walk up window operational needs.

Fits a common 4”w x 5” rough opening and can be set in wood, masonry or surrounded by storefront.


Anodized aluminum extrusions and ¾” glazing options combine to give you an attractive window that not only enhances building exteriors, it will not rust, pit or weather. Track free bottom sill provides for a contaminant free surface. Bottom still is angled downward to ensure rain, sleet and snow are deflected away from the interior and includes a security lip. Self-latches every time it closes so it cannot be pushed open from the outside. Also includes a thumb turn lock and night locking bar.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) frame
  • Specify L/R or R/L slide direction from outside view


Standard Features

Standard Sizes:

Overall Frame Size 47.5”w x 59.5”h (4’w x 5’h rough opening)

Standard Glazing:
  • ¼” clear tempered glazing (275 series window)
  • ¾” insulated Solarban 70XL low e tempered glazing  (600 series window)
Available Operating Systems (learn more)
  • (SC) Manual Open / Self Close adjustable to Manual Open / Manual Close
  • (MOER) Manual Open / Electronic Release – electromagnetic hold-open device with presence sensor
  • (E) Fully Automatic Electric


  • Restaurants
  • Ticket Windows
  • Teller Windows
  • Foodservice projects
  • Restaurant Drive Thru
  • Restaurant Walk Up
  • California Health Code Compliant (when restricted opening / air curtain selected)
  • Concession Windows
  • Food Truck
  • Bank
  • Car Wash
  • Convenience Store
  • Dispensary
  • Distribution Center
  • Guard Shack
  • Liquor Store
  • Medical Office/Hospital
  • Office Reception
  • Park / Zoo / Aquatic Center
  • Parking Garage
  • Pharmacy Interior
  • Scale House
  • School
  • Stadium
  • Theater

Chain Restaurants

  • McDonalds
  • Starbucks
  • Dunkin
  • Shake Shack
