275 with Transom or Air Curtain

275 with Transom or Air Curtain

¼” Tempered Glazing

The popular 275 single panel slider is both functional and economical.  Easily adapt to different geographic zones by adding an air curtain, heated air curtain or solid glass transom.   All configurations fit a common 4”w x 5” rough opening, making this an ideal solution for multi-unit operators in different geographic zones.  Simply choose the appropriate configuration for your climate:

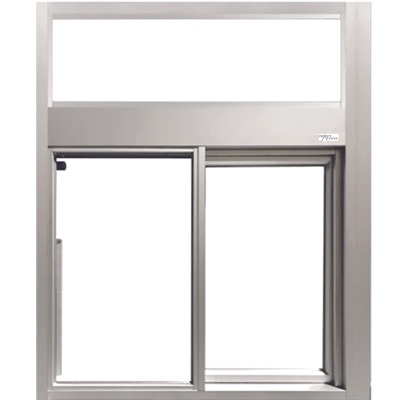

  • 275 with solid glass transom

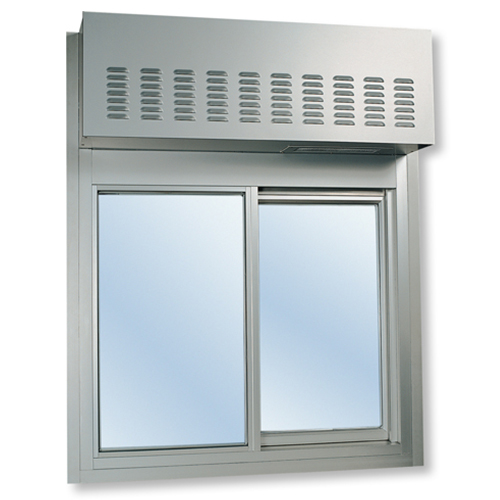

  • 275 with AA300 heated air curtain
  • 275 with AA100 unheated fly fan transom package
  • 275 West Coast package with restricted service opening and AA100 fly fan

Optional sidelights add visibility and light.

Choose (2) 18”w sidelights or (1) 36” sidelight to fit popular overall RO of 7’w x 5’h

Description

Anodized aluminum extrusions and ¼” tempered glass combine to give you an attractive, functional, affordable transaction window that will not rust, pit or weather.  Track free bottom sill provides for a contaminant free serving surface.  Bottom sill is angled downward to ensure rain, sleet and snow are deflected away from the interior.  Self latches every time it closes so it cannot be pushed open from the outside.  Also includes a thumb turn lock and night locking bar.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) frame
  • Specify L/R or R/L slide direction from outside view

Click here for ¾” insulated / hurricane / bullet resistant options

Standard Features

Standard Sizes:

Frame Size (4’w x 5’h rough opening)  47.5”w x 59.5”h x 4”d

Add Side Lights for overall frame size of 83.5”w x 59.5”h x 4”d (7’w x 5’h rough opening)

  • (2) 18”w sidelights
  • (1) 36” sidelight

Customizable



Standard Glazing:
  • ¼” Clear Tempered Glazing

Available Operating Systems:

(learn more)

  • (SC) Manual Open / Self Close adjustable to manual open/manual close
  • (MOER) Manual Open / Electronic Release –electromagnetic hold-open device with presence sensor
  • (E) Fully Automatic Electric

Custom Options

There are many ways to customize the 275/Transom/Sidelights to suit your project.

Applications

  • Restaurants
  • Interior Transaction Windows
  • Ticket Windows
  • Teller Windows
  • Foodservice projects
  • Restaurant Drive Thru
  • Restaurant Walk Up
  • California Health Code Compliant (when restricted opening / air curtain selected)
  • Concession Windows
  • Food Truck
  • Bank
  • Car Wash
  • Convenience Store
  • Dispensary
  • Distribution Center
  • Guard Shack
  • Liquor Store
  • Medical Office/Hospital
  • Office Reception
  • Park / Zoo
  • Parking Garage
  • Pharmacy Interior
  • Scale House
  • School
  • Stadium
  • Theater

Chain Restaurants

  • Starbucks
  • Raising Canes
  • Dunkin
  • Burger King
  • Freddy’s
  • El Pollo Loco
  • Del Taco
