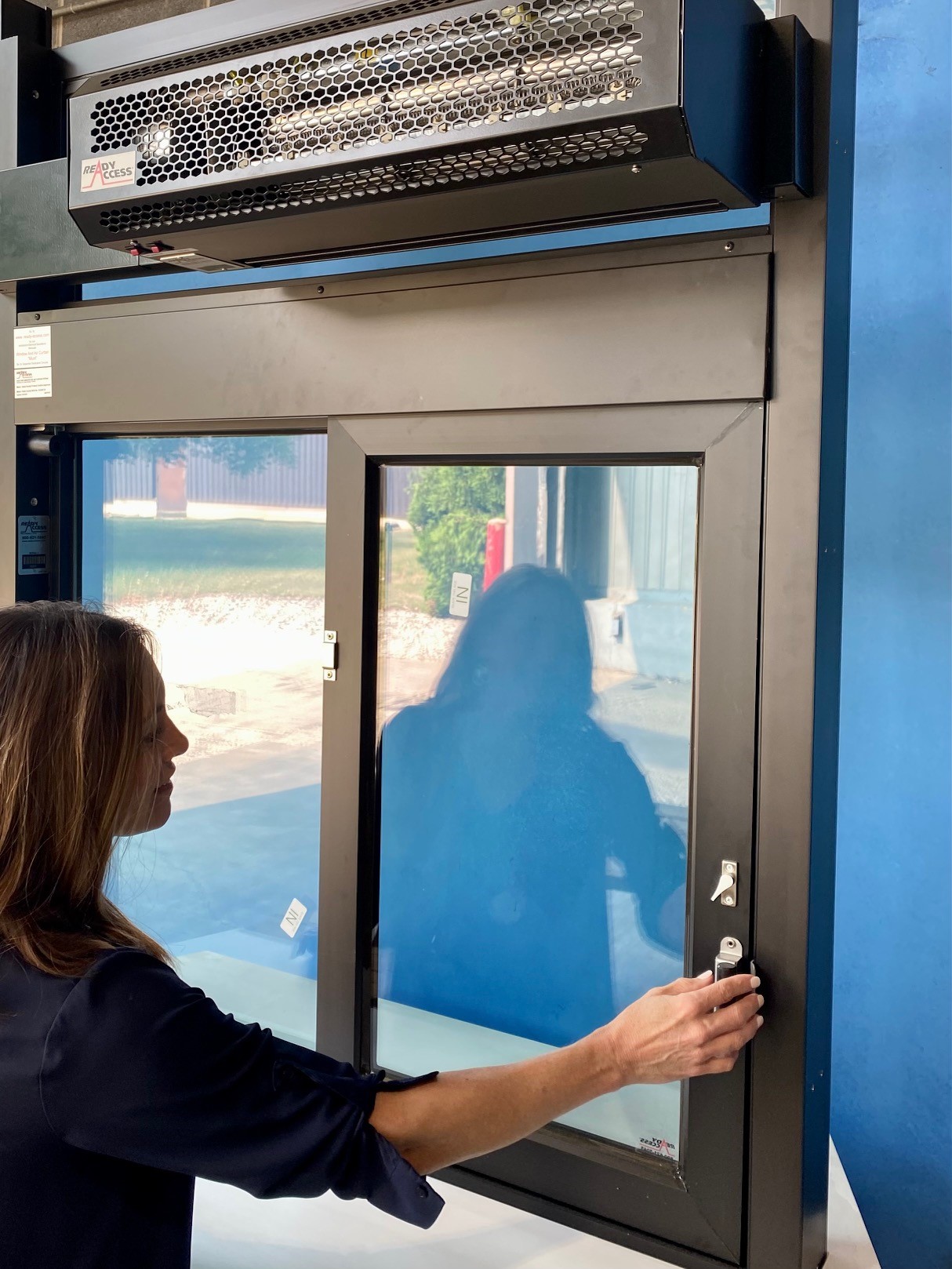

RAC-22 INSIDE MOUNT LOW-PROFILE WINDOW AIR CURTAIN

RAC-22 INSIDE MOUNT LOW-PROFILE WINDOW AIR CURTAIN

(heated (E) and unheated)

The RAC-22 is an efficient, architecturally pleasing inside mount window air curtain solution designed specifically for Ready Access windows. It provides a barrier against insects, dust, and exhaust fumes to satisfy health department requirements for a fly fan. Also improves energy efficiency by reducing HVAC losses. The window air curtain is available with heat for staff comfort.

Manufactured and warrantied by Ready Access for complete service window system. Low profile design for headroom and aesthetics while still satisfying NSF guidelines for air flow at counter height. This window air curtain can be purchased at the same time as the window or added to existing windows.

Available in clear aluminum or black casing to match the window. Comes standard with mounting brackets.

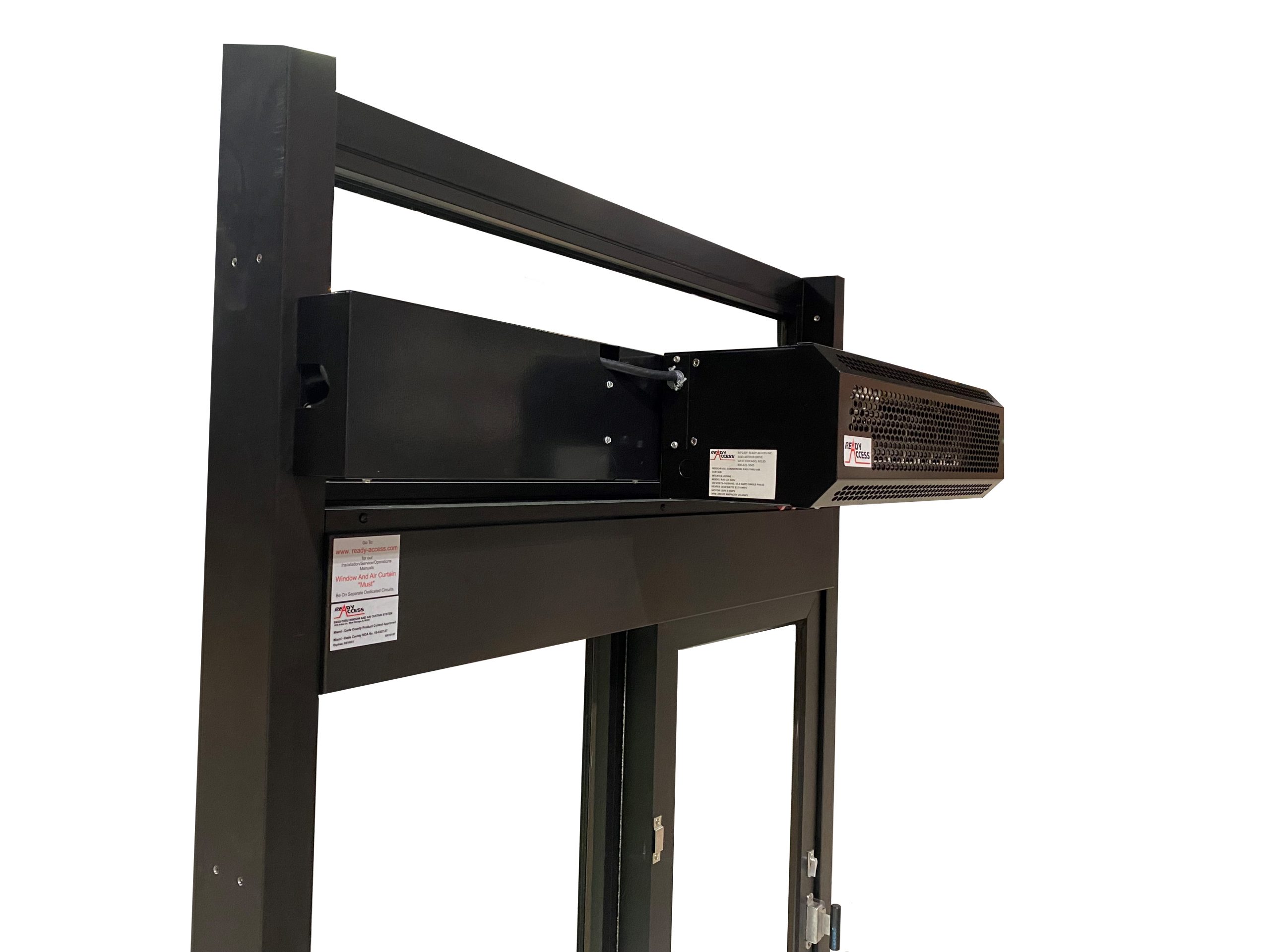

Mounting / Switch Package available for mounting on window with attached transom or on a wall. Neatly covers electronics for clean look.
Relay switch turns fan on when window opens and cycles off when it closes.

Description

  • Fully assembled and ready to install
  • Black or Clear Aluminum frame
  • Heated or Unheated
  • Low profile 26.8”w x 9.1”d x 7.1”h without mounting brackets or Mounting-Switch Package
  • 22.6”w nozzle width
  • 120v single phase / 60 hz / 20 AMP dedicated circuit

 Learn more about air curtains

Downloads

Request Quote


ACCESSORIES

INFORMATION REQUIRED FOR PROPER SWITCH
(please provide serial number of window in COMMENTS)
