West Coast Window Package for California Retail Food Code

Description

Anodized aluminum extrusions and tempered glass combine to give you an attractive, functional, affordable transaction window that will not rust, pit or weather. Track free bottom sill provides for a contaminant free serving surface. Bottom sill is angled downward to ensure rain, sleet and snow are deflected away from the interior. Self-latches every time it closes so it cannot be pushed open from the outside. Also includes a thumb turn lock and night locking bar.
Restricted service opening is under 432 square inches, and the fly fan is integrated into the transom. Relay switch activates fan when the window opens and cycles off when the window is closed.
(learn more) about CA health code requirements for foodservice.

• Fully assembled, pre-glazed and ready to install
• Dark Bronze or Clear (silver) frame
• Specify L/R or R/L slide direction from outside view

Standard Features

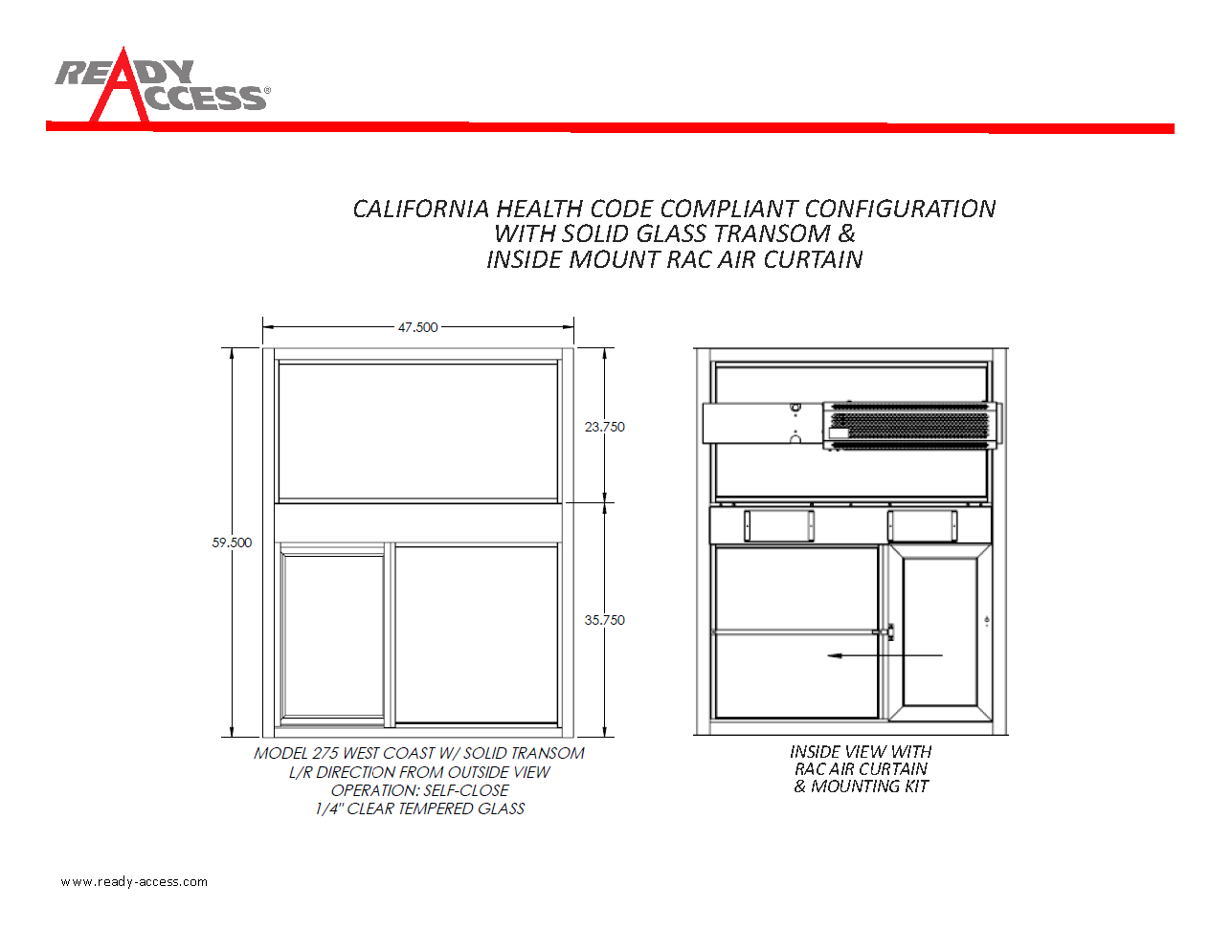

Frame Size: 47.5”w x 59.5”h  (4’w x 5’h rough opening)

Choose service opening size (both options are under 432 square inches)

• 15-3/4”w x 27-1/4”h
• 19”w x 21-1/2”h

• 1/4″ Clear Tempered Glazing (4″ deep frame)
• 3/4″ Insulated Low E Solarban 70XL (4-1/2″ deep frame)

(learn more)

• (SC) Manual Open / Self Close adjustable to manual open/manual close
• (MOER) Manual Open / Electronic Release –electromagnetic hold-open device with presence sensor
• (E) Fully Automatic Electric

Custom Options

• • Custom Frame Size
  • Custom Glazing
    – Tint
    – Clear Insulated
    – Low E Hard Coat on 1/4″
    – 5/16 Laminated Safety Glass
  • Powder Coated Frame – specify RAL from Tiger Drylac
  • Side Light(s) for 7’w x 5’h rough opening.
    Total frame size with window: 83-1/2”w x 59-1/2”h   (sidelights shipped loose for assembly in field)
    – (2) 18”w sidelights
    – (1) 36” sidelight
    – Or specify custom and adjust rough opening accordingly
