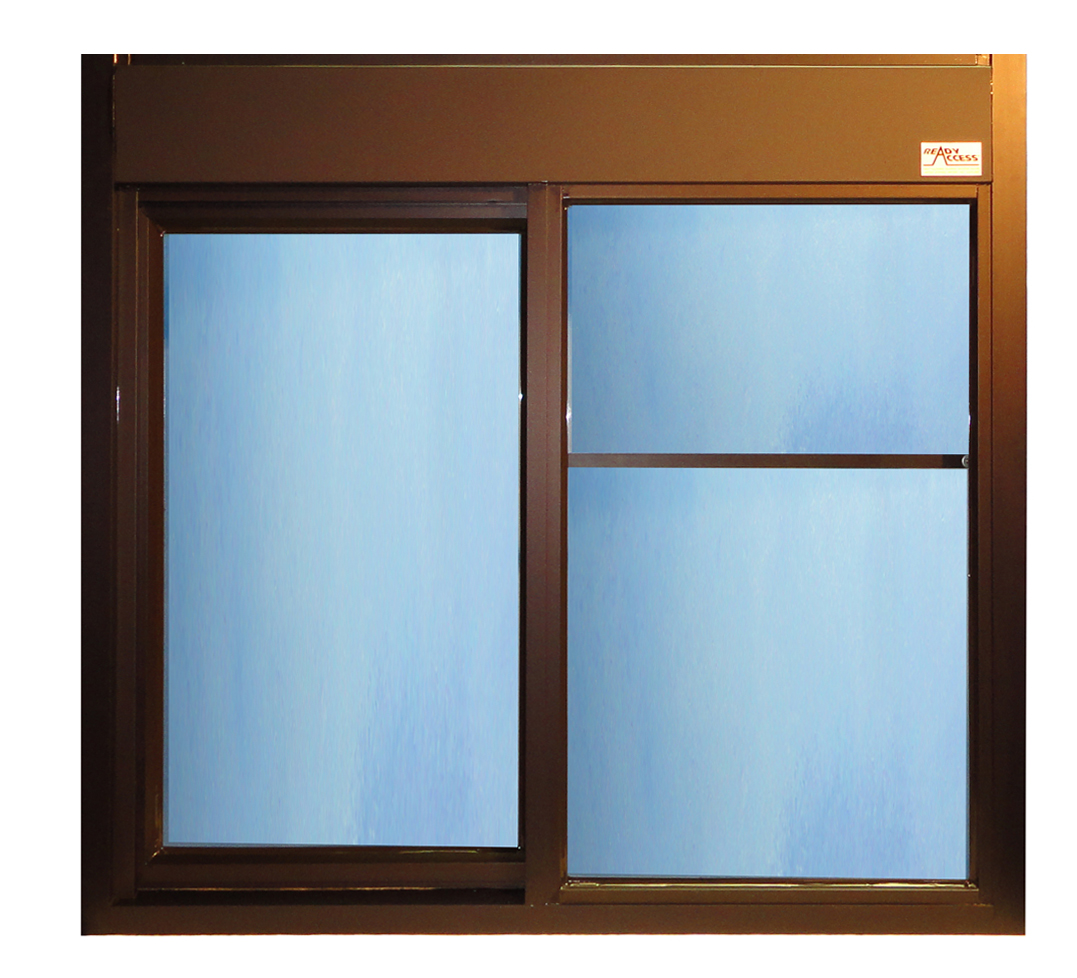

275 Single Panel Sliding Transaction Window

275 Single Panel Sliding Transaction Window

¼” Tempered Glazing

The popular 275 single panel sliding transaction window is both functional and economical. It features a fixed panel and an operable panel with lots of glass for high visibility. Self-closing operating system is located in the header to keep the service area clear. This transaction window is ideal for many applications.



Description

Anodized aluminum extrusions and ¼” tempered glass combine to give you an attractive, functional, affordable transaction window that will not rust, pit or weather.  Track free bottom sill provides for a contaminant free serving surface.  Bottom sill is angled downward to ensure rain, sleet and snow are deflected away from the interior.  Self latches every time it closes so it cannot be pushed open from the outside.  Also includes a thumb turn lock and night locking bar.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) frame
  • Specify L/R or R/L slide direction from outside view

Click here for ¾” insulated / hurricane / bullet resistant options
Click here window with transom or air curtain

Standard Features

Standard Sizes:
  • 47.5”w x 43.5”h x 4”d (19”w x 35”h service opening)
  • 47.5”w x 35.75”h x 4”d (19”w x 27”h service opening) (15” west coast restricted opening also available)*
  • 35.75”w x 35.75”h x 4”d (13.5”w x 27”h service opening)*
  • Customizable

*Meets CA restricted service opening requirement – under 432 square inches (learn more)



Standard Glazing:
  • ¼” Clear Tempered Glazing
Available Operating Systems:

(learn more)

  • (SC) Manual Open / Self Close adjustable to manual open/manual close
  • (MOER) Manual Open / Electronic Release –electromagnetic hold-open device with presence sensor
  • (E) Fully Automatic Electric

Custom Options

Applications

  • Restaurants
  • Interior Transaction Windows
  • Ticket Windows
  • Teller Windows
  • Foodservice projects
  • Restaurant Drive Thru
  • Restaurant Walk Up
  • California Health Code Compliant (when restricted opening / air curtain selected)
  • Concession Windows
  • Food Truck
  • Bank
  • Car Wash
  • Convenience Store
  • Dispensary
  • Distribution Center
  • Guard Shack
  • Liquor Store
  • Medical Office/Hospital
  • Office Reception
  • Park / Zoo
  • Parking Garage
  • Pharmacy Interior
  • Scale House
  • School
  • Stadium
  • Theater

Chain Restaurants

  • Hardees
  • Carl’s Junior
  • Krispy Kreme
  • Taco Bell
  • Burger King
  • KFC

Downloads

Request Quote

Model 275 only available with ¼” tempered glass. For ¾” insulated, hurricane and bullet resistant options, please see Model 600.

*estimated special delivery charges in addition to LTL freight—price may vary.
