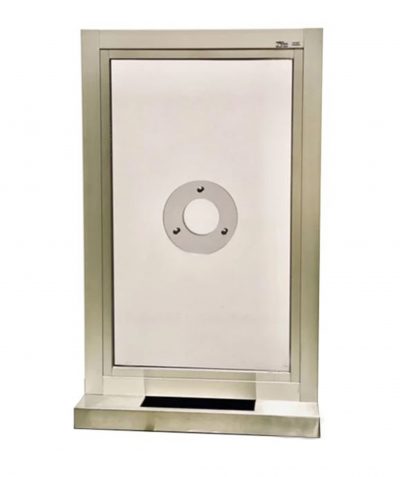

603 Walk Up Ticket Window / Cashier Window

603 Walk Up Ticket Window / Cashier Window

The 603 Walk Up Ticket Window includes a speaker hole and deal tray for money or paper transactions. There is ample visibility, while staff stays protected.

Choose from (4) standard glazings to meet your budget and security needs, from 1/4″” clear tempered to 1/14″” Level 3 bullet resistance.

This window is ideal for a wide variety of cashier window applications including: convenience stores, amusement parks, box offices, theaters, race tracks, sporting and concert venues, park districts, and corrections. It is also commonly used as a teller window at banks.

Note: this model has not been tested for hurricane.

Description

Anodized aluminum extrusions and stainless steel combine to give you an attractive window that can be used for interior or exterior applications. Safely transact business through the stainless steel deal tray which comes with an inside cover.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) frame with Stainless Steel Deal Tray
  • Available with a variety of standard glazing options to meet your security and budget considerations.

Standard Features

Standard Sizes:
  • 25-3/4″W x 42″H
    Includes a 25-3/4″ long x 12-1/4″ deep stainless steel shelf with built in deal tray. Deal tray transaction area is 12”wide x 1 7/8”deep.
  • 36″W x 36″H
    Includes a 36″ long x 12-1/4″ deep stainless steel shelf with built in deal tray. Deal tray transaction area is 12”wide x 1 7/8”deep.
  • 48″W x 48″H
    Includes a 48″ long x 12-1/4″ deep stainless steel shelf with built in deal tray. Deal tray transaction area is 12”wide x 1 7/8”deep.
  • Customizable
Glazing Options – Specify when ordering

VALUE – 1/4” clear tempered glass w/ aluminum speak thru

SECURITY

  • 3/4” Smash & Grab impact rated 7-layer glass/Lexan with Lexan speak thru
  • 3/4” Lexan Level 1 Bullet Resistance w/ Lexan speak thru
  • 1 1/4” Lexan Level 3 Bullet Resistance w/ Lexan speak thru

(not tested for hurricane NOA)

Custom Options

  • Custom Frame Size – Customize from 25 ¾” wide to the width or height you need.
    Please note:  Shelf/deal tray can range from 25 ¾” wide to max of 48”wide.
    Window frame can be extended to wider widths as needed.  Cannot be narrower than 25 ¾”.
  • Tint
  • Stainless Steel Speak Thru
  • Amplified Speaker – Haven SC100
  • Powder Coated Frame – specify RAL from Tiger Drylac

Applications

  • Interior Transaction Windows
  • Ticket Windows
  • Teller Windows
  • Bullet Proof Transactions (L1 and L3 Bullet Resistance)
  • Concession Windows
  • Bank
  • Corrections (Prison/Parole/Municipal)
  • Dispensary
  • Distribution Center
  • Medical Office/Hospital
  • Office Reception
  • Park / Zoo/ Aquatic Center
  • School
  • Stadium
  • Theater
