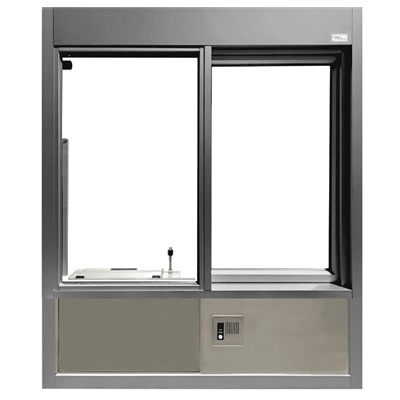

601 Security Window – Operable Pane with Service Drawer

601 Security Window – Operable Pane with Service Drawer

¾” Insulated, Hurricane or Security Glazing

The 601 Operable Window with Service Drawer gives operators the flexibility to transact face-to-face through the window, or to lock the window and serve through the drawer. Specified by restaurants in high-risk areas, pharmacies, banks, convenience stores, and corrections projects. Comes with pre-wired speaker. Simply choose the appropriate glass and drawer for your project.

Glazing Options

INSULATED  Dual pane 3/4” clear insulated tempered glass.

ENERGY SAVER Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass maximizes energy-efficiency and staff comfort.

HURRICANE IMPACT  ¾” Smash & Grab Impact Resistant 7-layer laminate/glass.

SECURITY Choose Smash & Grab or Level 1 Bullet Resistant Lexan.

Service Drawer Options

Cash Drawer: 12”w x 4”h x 9.25”d transfer area
Product Drawer: 18.25”w x 9.5”h x 14.25”d transfer area

Description

Operable window for face-to-face transactions.  Option to lock the window and serve through the drawer while communicating through the pre-wired speaker system.  Adaptable to specific security needs by choosing the appropriate glazing and service drawer.

Service Drawer is bullet resistant and extends 10” toward car or customer when open.  Side extrusions of the window are lined with bullet-resistant material when bullet resistant glazing is specified.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) anodized aluminum frame with Stainless Steel service drawer

Standard Features

Standard Sizes:

Frame Size (includes service drawer and speaker)

  • 47 ½”w x 58 ½”h (window size 47 ½”w x 43 ½”h)
  • 47 ½”w x 50 ¾”h (window size 47 ½”w x 35 ¾”h)
  • Customizable

Glazing Options:

INSULATED  Dual pane 3/4” clear insulated tempered glass.Miami-Dade Approval for non-impact zones.  NOA#16-0307.07

Florida Product Approval for non-impact zones.  #FL5102.2

ENERGY SAVER Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass maximizes energy-efficiency and staff comfort.

HURRICANE IMPACT  ¾” Smash & Grab Impact Resistant 7-layer laminate/glass.

Miami-Dade Approval for impact zones.  NOA#16-0307.06

Florida Product Approval for impact zones.  #FL5102.1

SECURITY GLAZING OPTIONS

  • ¾” Smash & Grab Impact Resistant 7-layer laminate/glass
  • ¾” Level 1 Bullet Resistant Lexan

Glazing is recognized by Underwriters Laboratories as providing Level 1 (9mm) protection per UL Standard 752.



Service Drawer Options

Cash Drawer

  • 12”w x 4”h x 9.25”d transfer area.
  • Level 1 Bullet Resistance.

Product Transaction Drawer

  • 18.25”w x 9.5”h x 14.25”d transfer area
  • Level 3 Bullet Resistance.

Available Operating Systems:  (learn more)

  • (SC) Manual Open / Self Close adjustable to Manual Open / Manual Close
  • (MC) Manual Open / Manual Close
  • (MOER) Manual Open / Electronic Release – electromagnetic hold-open device with presence sensor
  • (E) Fully Automatic Electric

Custom Options

Applications

  • Ticket Windows
  • Teller Windows
  • Foodservice projects
  • Restaurant Drive Thru
  • Restaurant Walk Up
  • California Health Code Compliant
  • Bank
  • Convenience Store
  • Corrections (Prison/Parole)
  • Dispensary
  • Distribution Center
  • Guard Shack
  • Liquor Store
  • Medical Office / Hospital
  • Hurricane Zone
  • Parking Garage
  • Pharmacy Exterior
  • School
