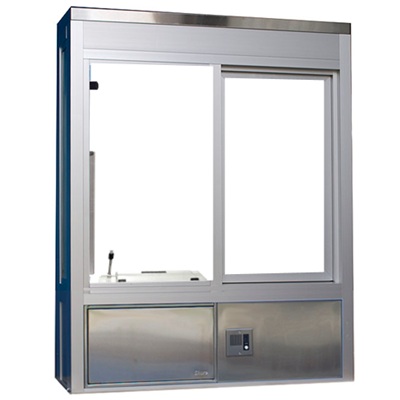

602 Security Window -Operable Pane w/ Service Drawer & Speaker

602 Security Window -Operable Pane w/ Service Drawer & Speaker

¾” Insulated, Hurricane or Security Glazing

The 602 Operable Window with Service Drawer gives operators the flexibility to transact face-to-face through the window, or to lock the window and serve through the drawer. Specified by restaurants in high-risk areas, pharmacies, banks, convenience stores, and corrections projects.

The frame “bumps out” from the building to create architectural interest from the exterior. From the interior, operators enjoy a large interior stainless steel shelf space for staging, along with light and a view of oncoming traffic. Comes with pre-wired speaker. Simply choose the appropriate glass and drawer for your project.

Glazing Options

INSULATED  Dual pane 3/4” clear insulated tempered glass.

ENERGY SAVER Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass maximizes energy-efficiency and staff comfort.

HURRICANE IMPACT  ¾” Smash & Grab Impact Resistant 7-layer laminate/glass.

SECURITY Choose Smash & Grab or Level 1 Bullet Resistant Lexan.

Service Drawer Options

Cash Drawer: 12”w x 4” high
Product Drawer: 18.25”w x 9.5”h deep transfer area with money clip and change cup.

Description

Features operable window for face-to-face transactions built on a bump out frame.  Option to lock the window and serve through the drawer while communicating through the pre-wired speaker system.  Window extends approximately 12.5” from building when installed, creating architectural interest and an interior staging shelf.

Service Drawer is bullet resistant and extends an additional 10” toward car or customer when open.  Side extrusions of the window are lined with bullet-resistant material when bullet resistant glazing is specified.

Adaptable to specific security needs by choosing the appropriate glazing and either a “cash” or “product transaction” service drawer.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) anodized aluminum frame with Stainless Steel service drawer

Standard Features

Standard Sizes:

Frame Size (includes service drawer and speaker)

  • 47 ½”w x 58 ½”h x 17”d (window size 47 ½”w x 43 ½”h) service opening 19”w x 34”h
  • 47 ½”w x 50 ¾”h x 17”d (window size 47 ½”w x 35 ¾”h) service opening 19”w x 27”h
Glazing Options:

INSULATED  Dual pane 3/4” clear insulated tempered glass.

Miami-Dade Approval for non-impact zones.  NOA#16-0307.07

Florida Product Approval for non-impact zones.  #FL5102.2

ENERGY SAVER Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass maximizes energy-efficiency and staff comfort.

HURRICANE IMPACT  ¾” Smash & Grab Impact Resistant 7-layer laminate/glass.

Miami-Dade Approval for impact zones.  NOA#16-0307.06

Florida Product Approval for impact zones. #FL5102.1

Security Glazing Options
  • ¾” Smash & Grab Impact Resistant 7-layer laminate/glass
  • ¾” Level 1 Bullet Resistant Lexan

Glazing is recognized by Underwriters Laboratories as providing Level 1 (9mm) protection per UL Standard 752.

  • 1 ¼” Level 3 Bullet Resistant Lexan

Glazing is recognized by Underwriters Laboratories as providing Level 3 (.44 Magnum) handgun protection per UL Standard 752.​

Service Drawer Options

Cash Drawer

  • 12”w x 4”h x 9.25”d transfer area
  • Level 1 Bullet Resistance

Product Transaction Drawer

  • 18.25”w x 9.5”h x 14.25”d transfer area
  • Level 3 Bullet Resistance

Available Operating Systems:  (learn more)

  • (SC) Manual Open / Self Close adjustable to Manual Open / Manual Close
  • (MOER) Manual Open / Electronic Release – electromagnetic hold-open device with presence sensor
  • (E) Fully Automatic Electric

Custom Options

Applications

  • Foodservice projects
  • Restaurant Drive Thru
  • Hurricane Zone (when Smash & Grab glazing selected)
  • Convenience Store
  • Corrections (Prison/Parole)
  • Dispensary
  • Distribution Center
  • Liquor Store
  • Pharmacy Exterior
