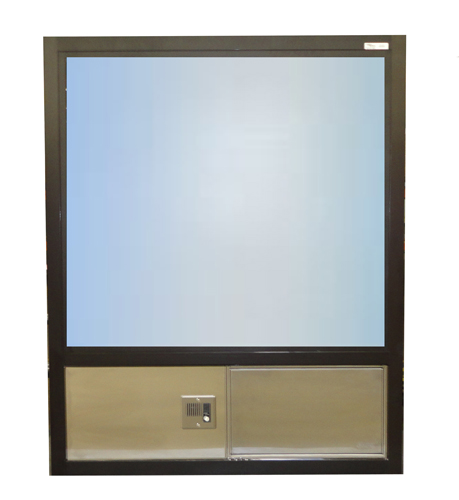

603 Fixed Pane with Service Drawer

603 Fixed Pane with Service Drawer

¾” Insulated, Hurricane or Security Glazing up to 1 ¼”

The 603 with Service Drawer is the most secure service window available, specified by pharmacies, banks, convenience stores, and corrections projects.   Comes with pre-wired speaker.  Simply choose the appropriate glass and drawer for your project.

600 INSULATED  Dual pane 3/4” clear insulated tempered glass.

600 ENERGY SAVER Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass maximizes energy-efficiency and staff comfort.

HURRICANE IMPACT  ¾” Smash & Grab Impact Resistant 7-layer laminate/glass.

SECURITY

  • Smash & Grab, Level 1
  • Level 3 Bullet Resistant Lexan
Service Drawer Options

Cash Drawer: 12”w x 4”h x 9.25”d transfer area
Product Drawer: 18.25”w x 9.5”h x 14.25”d transfer area

Description

Fixed pane window with service through a 4” deep CASH or 9 ½”deep PRODUCT drawer.  Adaptable to specific security needs by choosing the appropriate glazing and service drawer.  Includes pre-wired speaker for clear communication with customers that maintains staff safety.

Service Drawer is bullet resistant.  Side extrusions are lined with bullet-resistant material when bullet resistant glazing is specified.  Extends 10” toward car or customer when open.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) anodized aluminum frame with Stainless Steel service drawer

Standard Features

Standard Sizes:

Frame Size (includes service drawer and speaker)

  • 47 ½”w x 58 ½”h (window size 47 ½”w x 43 ½”h)
  • 47 ½”w x 50 ¾”h (window size 47 ½”w x 35 ¾”h)
  • Customizable

GLAZING – specify the appropriate glazing for your project

INSULATED Dual pane 3/4” clear insulated tempered glass.

Miami-Dade Approval for non-impact zones.NOA#16-0307.07

Florida Product Approval for non-impact zones.  #FL5102.2

ENERGY SAVER Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass maximizes energy-efficiency and staff comfort.

HURRICANE IMPACT  ¾” Smash & Grab Impact Resistant 7-layer laminate/glass.

Miami-Dade Approval for impact zones.  NOA#16-0307.06

Florida Product Approval for impact zones.  #FL5102.1

SECURITY GLAZING OPTIONS

  • ¾” Smash & Grab Impact Resistant 7-layer laminate/glass
  • ¾” Level 1 Bullet Resistant Lexan
  • 1 ¼” Level 3 Bullet Resistant Lexan​

SERVICE DRAWER OPTIONS

  • Cash Drawer
    12”w x 4”h x 9.25”d transfer area
    Level 1 Bullet Resistance.
  • Product Drawer
    18.25”w x 9.5”h x 14.25”d
    Level 3 Bullet Resistance

Custom Options

Beyond the standard sizes and glazing, you can customize the 603 to meet your specific needs.

Applications

  • Ticket Windows
  • Teller Windows
  • Foodservice projects
  • Restaurant Drive Thru
  • Restaurant Walk Up
  • Bank
  • Convenience Store
  • Corrections (Prison/Parole)
  • Dispensary
  • Distribution Center
  • Guard Shack
  • Liquor Store
  • Medical Office / Hospital
  • Hurricane Zone
  • Parking Garage
  • Pharmacy Exterior
