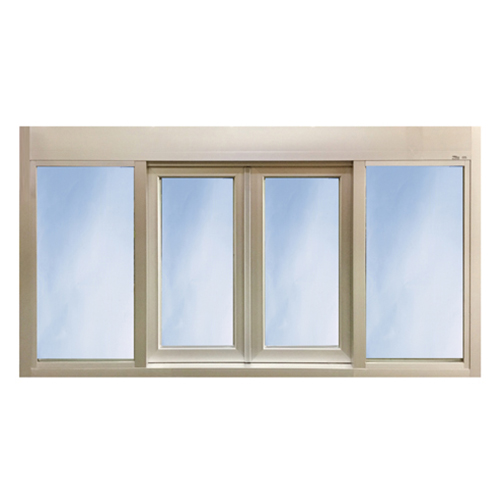

606 Bi-Parting Sliding Window

606 Bi-Parting Sliding Window

¾” Insulated Glazing

This attractive insulated window is ideal for a drive-thru or walk up applications. Available in 3 frame widths to meet your project requirements, including designs with extra-large service openings.  Bi-parting doors slide open to the sides leaving the counter free for staging orders and serving customers.

INSULATED  Dual pane 3/4” clear insulated tempered glass.

ENERGY SAVER  Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass.

Description

Anodized aluminum extrusions and stainless steel combine to give you an attractive window that not only enhances building
exteriors, it will not rust, pit or weather. Track free bottom sill provides for a contaminant free surface. The 606 Bi-Parting Slider
automatically locks each time the window closes, providing security when the window is left unattended. When the window is
closed, manual security locks help prevent outside entry.

  • Fully assembled, pre-glazed and ready to install
  • Dark Bronze or Clear (silver) frame

Standard Features

Standard Sizes:
  • 606-54 53-½”w x 37-¾″h x 4-½”d (22″w x 29″h service opening)
  • 606-72 72″w x 41″h x 4-½”d (30″w x 32-½”h service opening)
  • 606-80 79-½”w x 43-½”h x 4 ½”d (34″ wide x 34-¾″h service opening)
Standard Glazing:

INSULATED  Dual pane 3/4” clear insulated tempered glass.

ENERGY SAVER  Dual pane ¾” insulated low-e tempered (Solarban 70XL) glass.

Available Operating Systems: (learn more)
  • (SC) Manual Open / Self Close
  • (E) Fully Automatic Electric – 53 ½”W Only
  • Manual Open/Manual Close
    – Specify for paper transactions when you do not want the window to self-close.  Generally not appropriate for foodservice.

Custom Options

  • Solid Transoms or split transom to house air curtains
  • Heated or Non Heated Air curtains
  • Tinted Glazing
  • Powder Coated Frame – specify RAL from Tiger Drylac

Applications

  • Restaurants
  • Interior Transaction Windows
  • Ticket Windows
  • Teller Windows
  • Foodservice Projects
  • Restaurant Drive Thru
  • Restaurant Walk Up
  • Concession Windows
  • Food Truck
  • Bank
  • Car Wash
  • Convenience Store
  • Dispensary
  • Distribution Center
  • Guard Shack
  • Liquor Store
  • Medical Office/Hospital
  • Office Reception
  • Park / Zoo
  • Parking Garage
  • Pharmacy Interior
  • Scale House
  • School
  • Stadium
